Thermal Curtain Wall System

2000-T Series 2" Thermal Curtain Wall

A 2" thermally improved curtain wall system for commercial building applications, with independently tested air, water and structural performance.

Laboratory Testing Complete

Intertek completed air leakage, static and cyclic water penetration, uniform-load deflection and structural testing on a four-lite fixed specimen. The specimen met the specified performance requirements.

Dimensions

  • 2" frame width
  • 4" back section
  • 6" overall depth

Glazing

  • 1" infill, dual glazed
  • Outside glazed captured curtain wall
  • Continuous gasket thermal break
Download Test Summary Letter →
2000-T Series Curtainwall - View 1

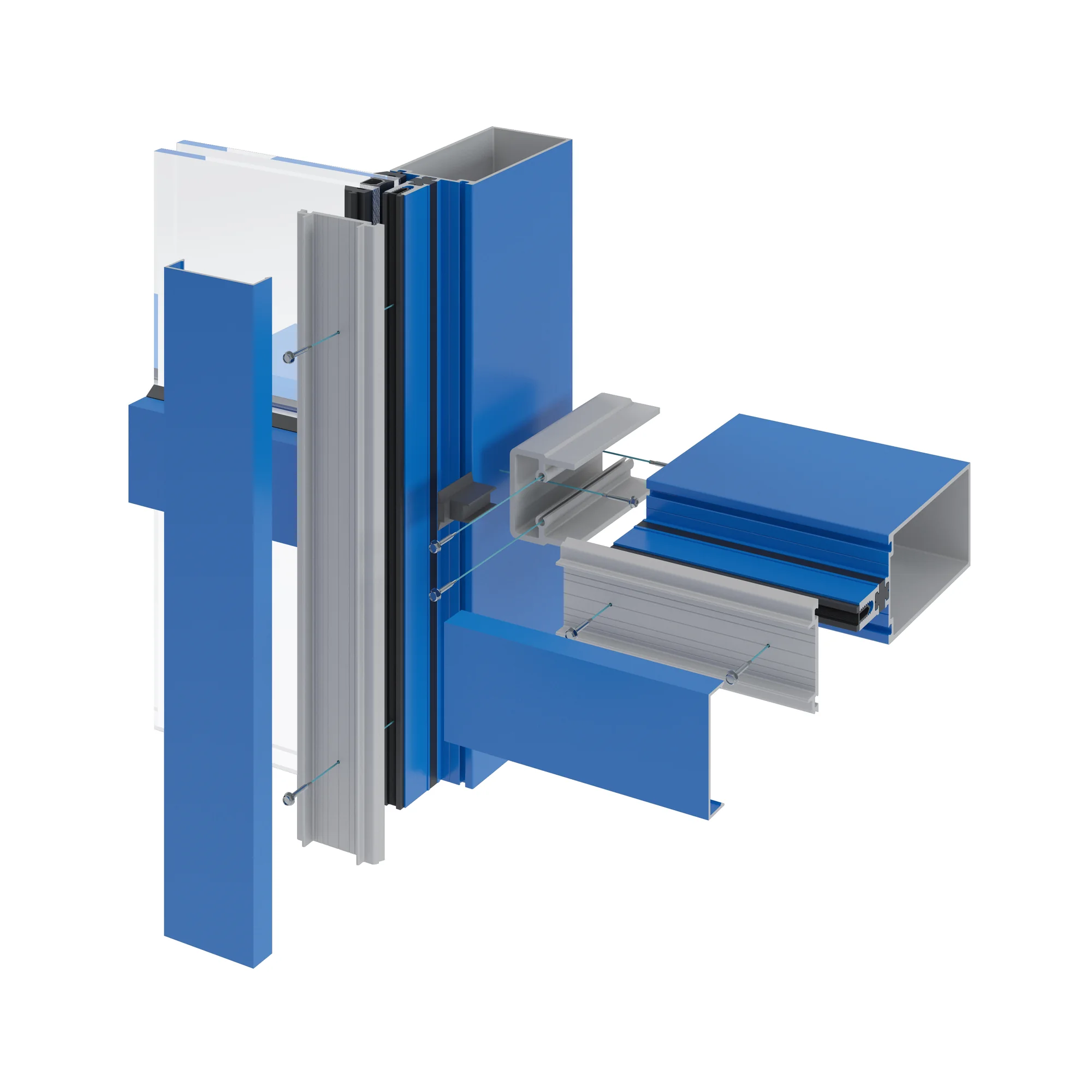

2000-T Series Curtainwall - View 2
2000-T Series Curtainwall - View 3

Overview

The Acro 2000-T Series is a thermally improved curtain wall system designed to integrate with door and vent systems.

Features

System Design

  • 2" frame width
  • 4" back section (6" overall depth)
  • Thermally improved
  • Outside glazed captured curtainwall
  • 1" infill (dual glazed)
  • Concealed shear block joinery

Construction & Performance

  • Continuous gasket thermal break
  • Designed to integrate with door and vent systems
  • Aluminum Alloy 6063 T6 temper
  • Pressure-equalized rainscreen system
  • Injection molded corner block to control water infiltration
  • Steel reinforced mullions available
  • Extended cap/sunshade available

Applications

Commercial building envelope applications requiring a thermally improved curtain wall system.

Finishes

Clear Anodized
Dark Bronze Anodized (black)
Mill Finish
Custom Painted Colors AvailableRequires additional lead time.

Performance

Intertek laboratory testing evaluated a 2000-T Series four-lite fixed combination specimen for air leakage, static and cyclic water penetration, uniform-load deflection and structural performance.

Air Leakage - ASTM E283 Passed at 75 & 300 Pa Infiltration: 0.00 L/s/m² at both pressures. Exfiltration: 0.00 L/s/m² at 75 Pa and 0.01 L/s/m² at 300 Pa.
Water Penetration - ASTM E331 & E547 Passed at 720 Pa 15.0 psf. No leakage during the 15-minute static or 24-minute cyclic water tests.
Uniform-Load Deflection - ASTM E330/E330M 4,800 Pa / 100.3 psf Maximum measured mullion deflection: 9.93 mm, within the L/175 limit of 12.70 mm.
Structural Load - ASTM E330/E330M 7,200 Pa / 150.4 psf No failure, permanent deformation or operational malfunction after testing.
Test Specimen 2,054 x 2,222 mm Four-lite fixed combination; 80.9 x 87.5 in. Tested area: 4.57 m² (49.15 ft²).
Tested Glazing 25 mm (1") IGU 6 mm clear tempered glass / 12 mm spacer / 6 mm clear tempered glass.

Documents & Test Results

Public documentation and verified performance information for the completed 2000-T Series laboratory testing.

Performance Reports

Intertek Test Summary LetterDownload PDF

Design Documents

Architectural manual and CAD files

Coming Soon

Parts List

Parts list

Coming Soon
System Selection

Compare Acro curtain wall systems

SystemThermalGlazingFrame WidthTypical Applications
3000 Thermal Yes 1" dual and 1-3/4" triple glazing 2-1/2" Commercial buildings, institutional projects and high-performance envelopes
2000-T Thermal
Laboratory Tested		 Yes 1" dual glazing 2" Commercial building envelopes requiring a thermally improved system
2000 Non-Thermal No 1" dual glazing 2" Office, retail, school and industrial applications where thermal performance is not required

For project-specific glazing, hardware, finish and performance requirements, contact Acro Aluminum.
