Drainable Louver System

2" Drainable Louver

Extruded aluminum 2" (51mm) deep drainable blade louver designed to integrate with curtain wall or storefront systems.

Frame
  • 2" (51mm) deep frame
  • 1.5mm thick 6063-T6 extruded aluminum
  • Minimum size: 8" x 8"
Blade
  • 2-1/2" blade spacing
  • Screw spline concealed attachment
  • Drainable blades divert water to jambs and sill
Download Brochure
Louver View 1

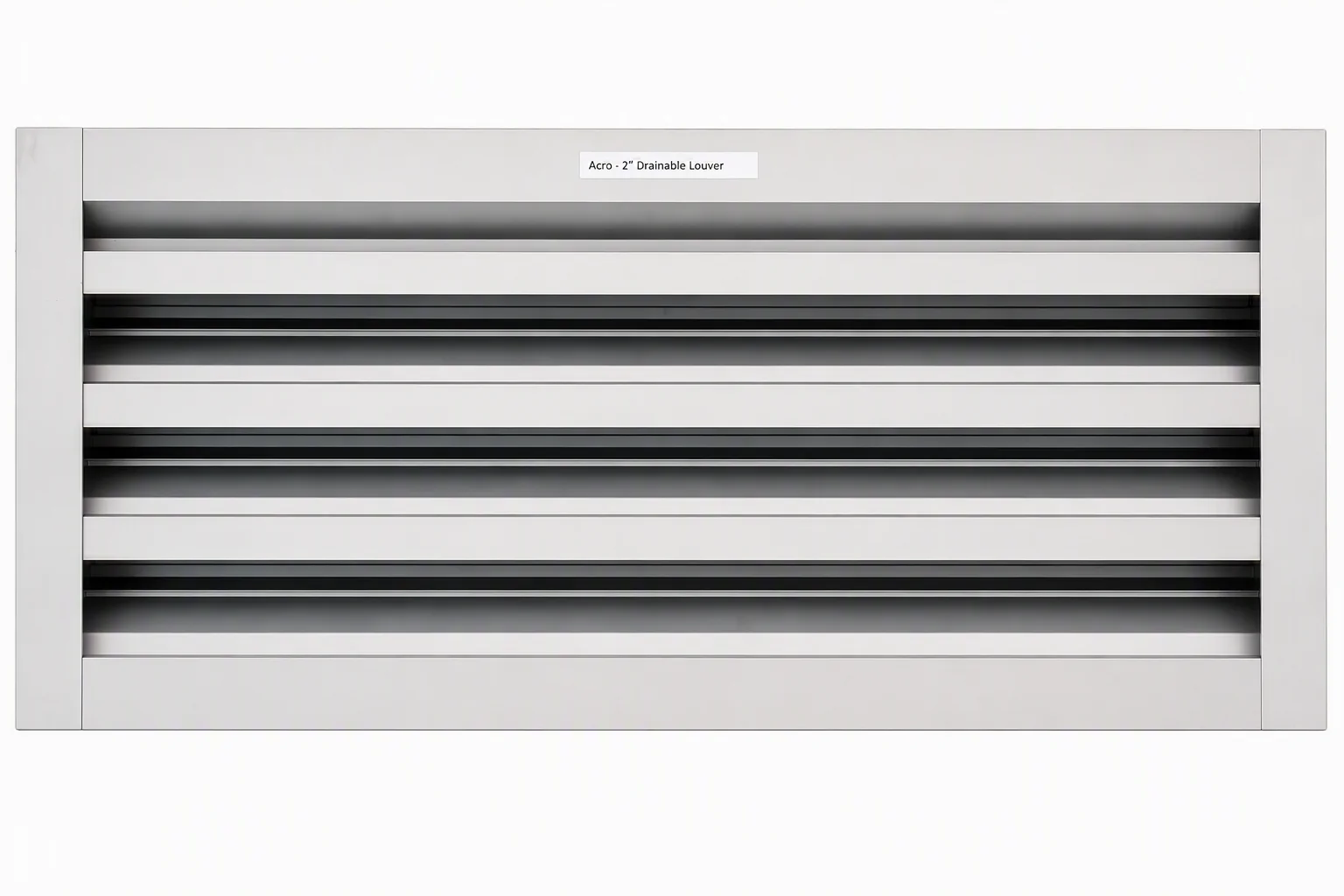

Louver View 2

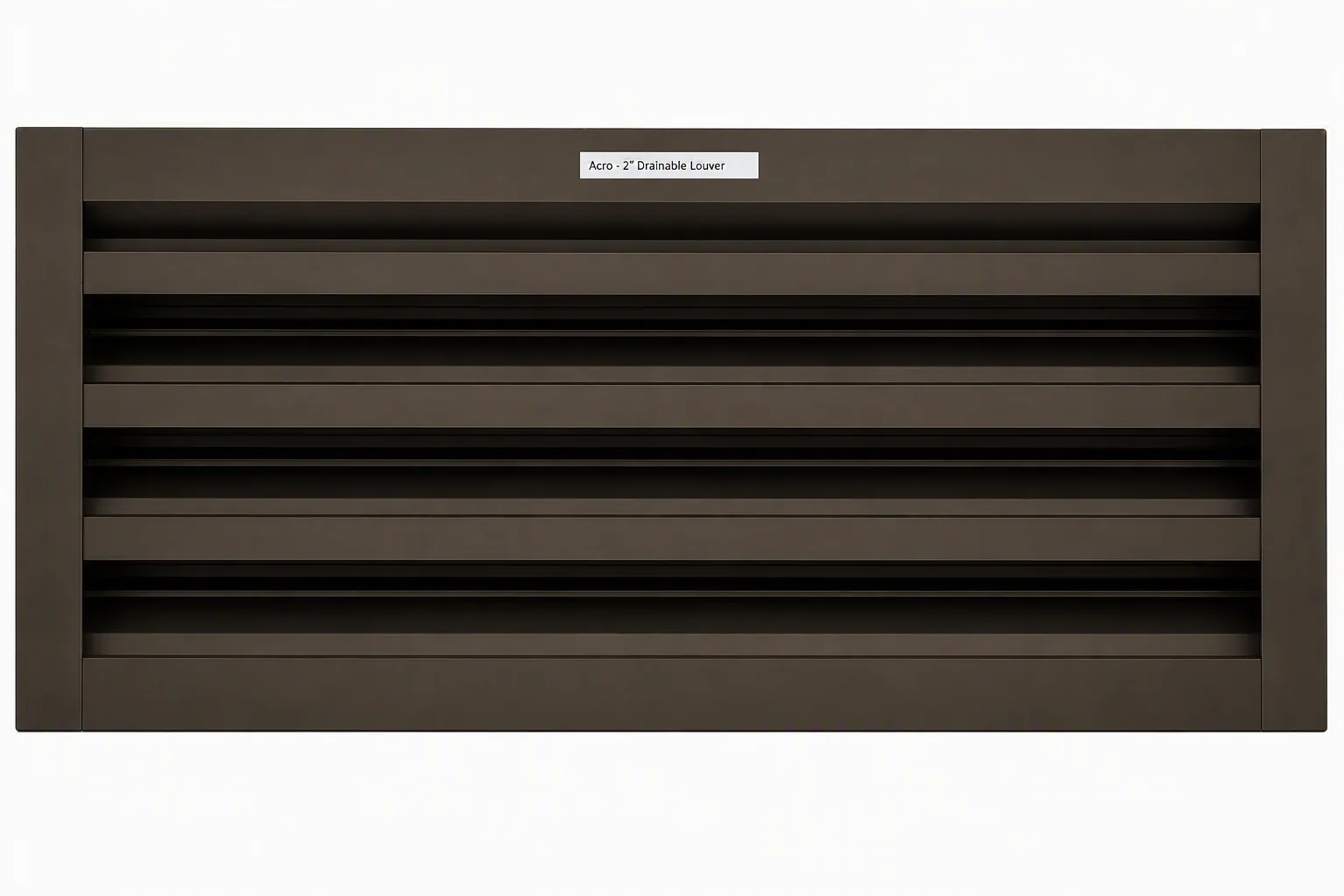

Louver View 3

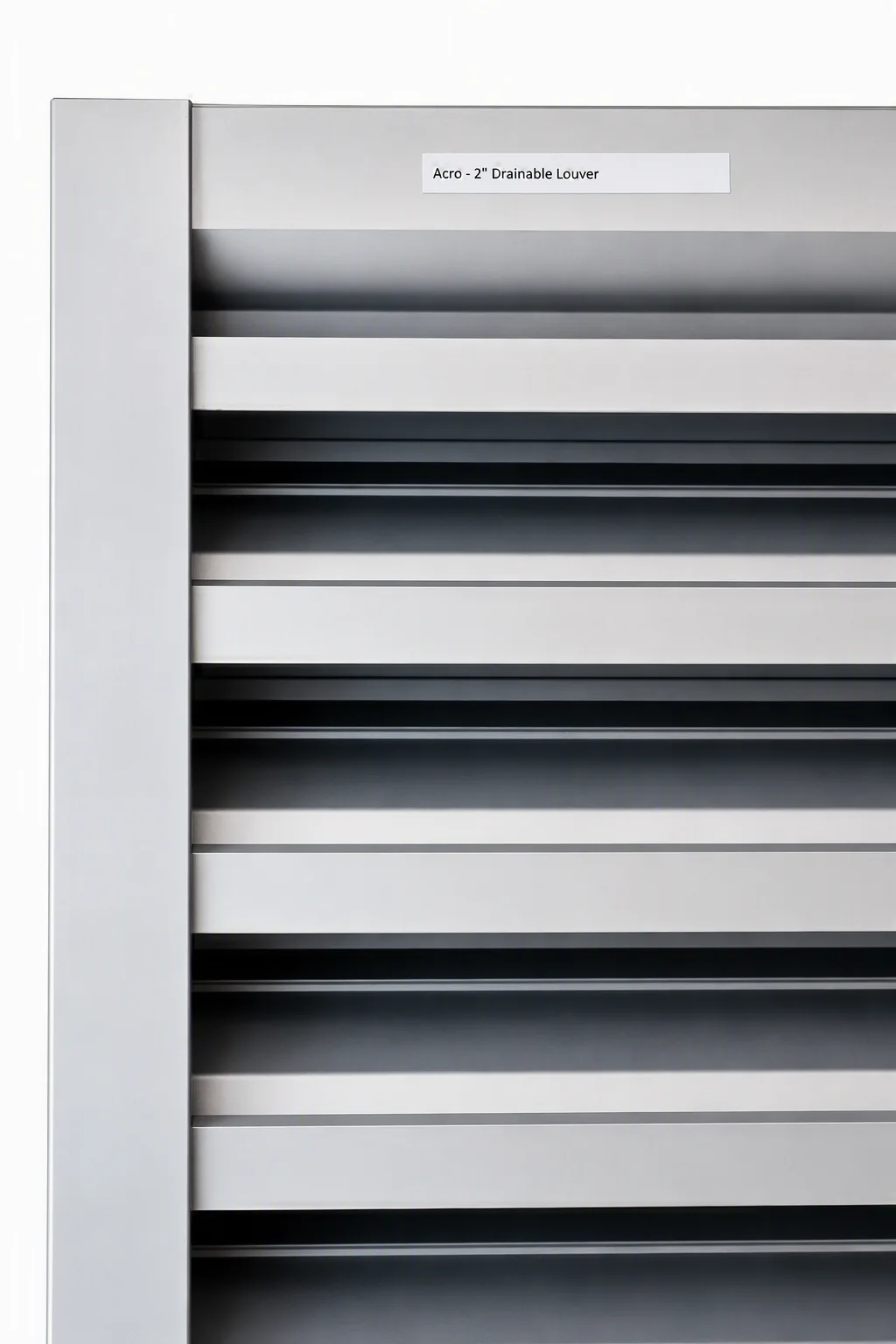

Louver View 4

Overview

High performing louver designed to be integrated in a curtain wall or storefront system. Drainable blades divert water to jambs and out through the sill.

Product Type

Extruded aluminum 2" deep drainable louver system.

Features

  • Frame: 2" (51mm) deep frame
  • 1.5mm thick 6063-T6 extruded aluminum for frame and blades
  • 2-1/2" blade spacing
  • Blades attached by screw spline concealed in frame
  • Can be supplied with bird screen or blank off panel
  • Blade reinforcing available with 1" x 1" L angle
  • Extruded with glazing pocket flange to minimize air and water leakage at curtainwall or storefront transition
  • Minimum size: 8" x 8"

Applications

Curtain Wall Integration

Designed to integrate with curtain wall systems.

Storefront Integration

Designed to integrate with storefront systems.

Commercial Openings

For commercial building openings requiring a drainable louver system.

Finishes

Clear Anodized
Black Anodized
Mill Finish
Custom Paint or Powder CoatCustom finishes available.

Documents

Architectural Manual
Acro Aluminum 2 inch Drainable Louver
Download PDF
